Pin & Tube kit for joining links on the TAG Heuer Carrera steel bracelet models BA0795 and BA0796

Pin & Tube kit for joining links on the TAG Heuer Carrera steel bracelet models BA0795 and BA0796.

This pin and tube kit can be used to join together links on the steel bracelet models BA0795 and BA0796, which are fitted to many TAG Heuer Carrera models. The model number of the bracelet will be shown on your guarantee card after the watch model number, for example CV2A10.BA0796 denotes a Carrera model CV2A10 fitted with the BA0796 steel bracelet.

Until now the only source for these items has been TH themselves, and even then they are often hard to obtain as well as being expensive. Because they are not a standard size it is not possible to use off-the-shelf replacements either.

We can now offer these pins & tubes in the correct size at an affordable price. They are manufactured specially for us in high quality 316L stainless steel.

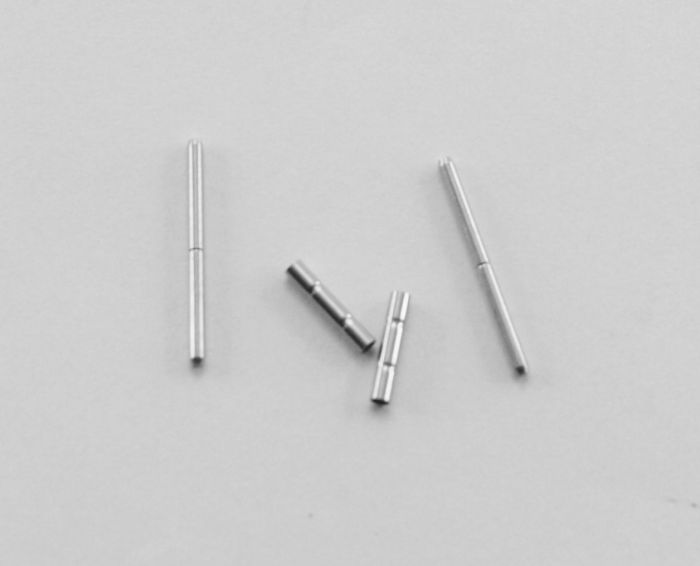

Each kit contains two pins and two tubes, sufficient to fit two extra links to the bracelet. The pins are removed from the bracelet using a pin removal tool such as our model BPR-1. To fit them, the tube is inserted into the inner section of the link, which is then lined up with the outer section of the adjoining link, and the pin is inserted using a small jeweller's hammer or press.

Carrera models often fitted with the BA0795 or BA0796 bracelets include those listed below, although there may be others:

CV2A10	CV2A11	CV7A10	CV7A11	CV7A12

Please note that these items cannot be used to attach the bracelet to the watch casing or clasp, they are only for joining the bracelet links together.
